E-bike
- Battery
- 840Wh battery
- UI/Remote

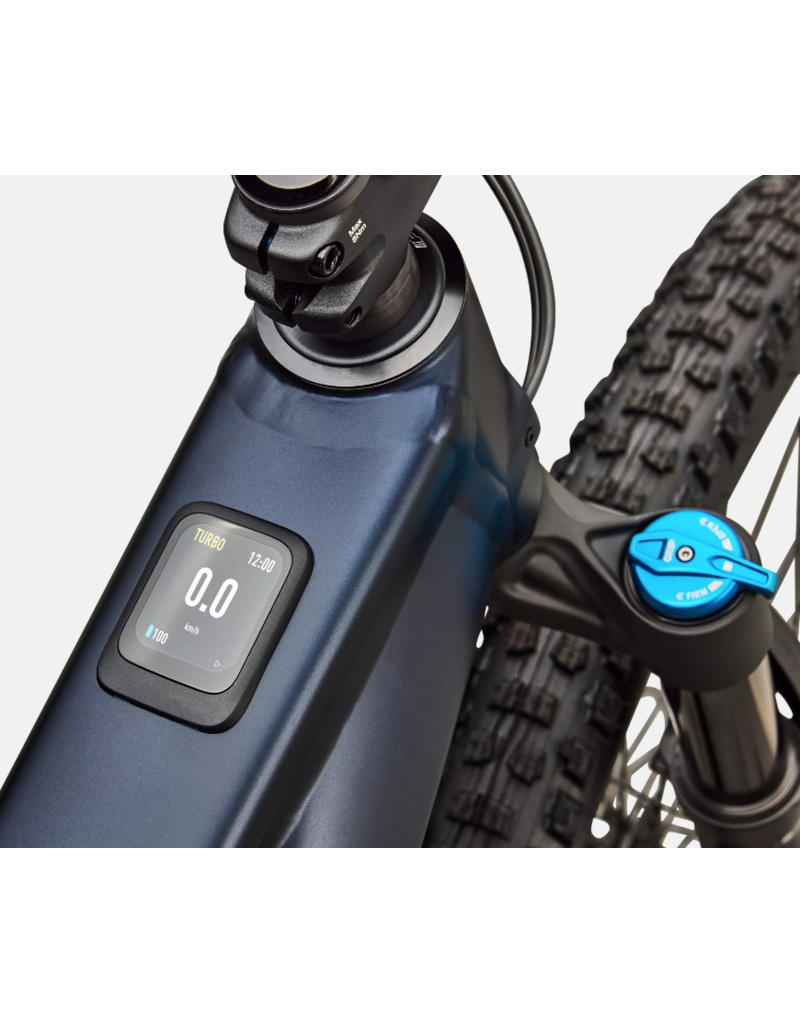

- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
- Fork
- FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm
- Rear Shock
- FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Brakes
- Front Brake
- SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
- Rear Brake
- SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Chain
- SRAM 70 Transmission 12-Speed Flattop Chain
- Shift Levers
- SRAM EAGLE 90T, single click, with MMX
- Crankset
- SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
- Rear Derailleur
- SRAM Eagle 90 T-Type
- Cassette
- SRAM GX Transmission, XS 1275, 10-52t
Wheels & tires
- Spokes
- DT Swiss Elemental
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
- Rear Hub
- Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb
- Front Tire
- Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
- Rear Tire
- Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Body Geometry Power Comp, steel rails
- Handlebars
- Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
- Grips
- Specialized Trail Grips
- SeatPost
- X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 229898
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 24.24 kg (53 lb, 7.0 oz)
- Weight Size
- S3
