E-bike

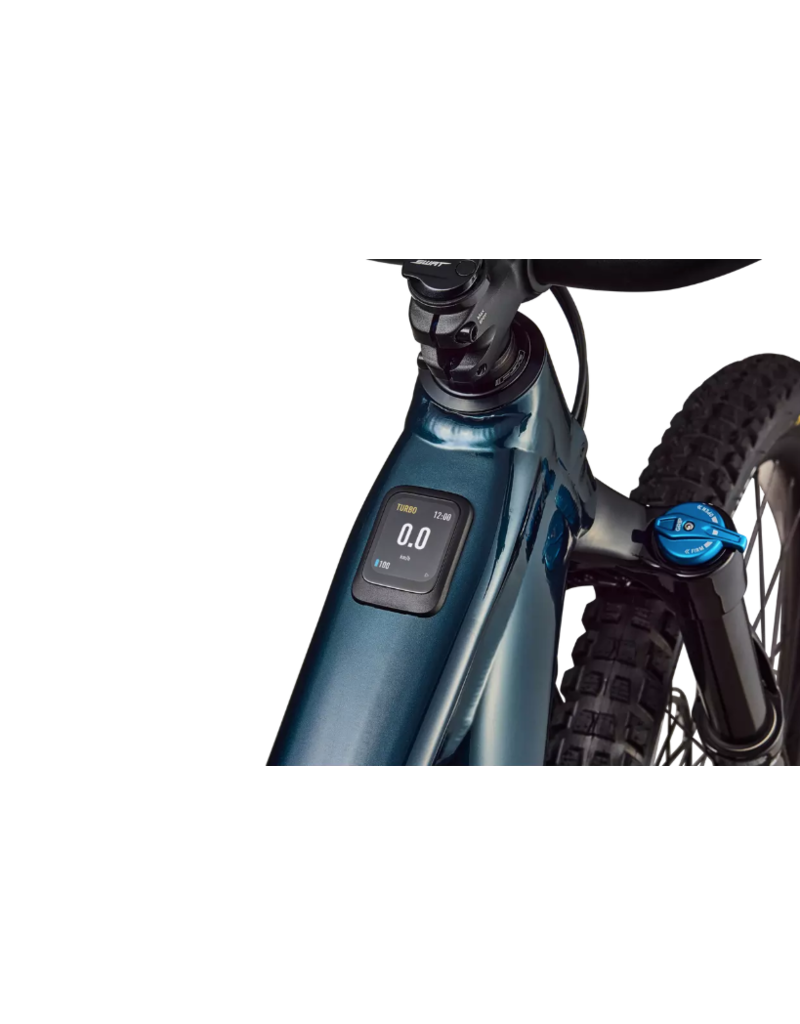

- UI/Remote All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

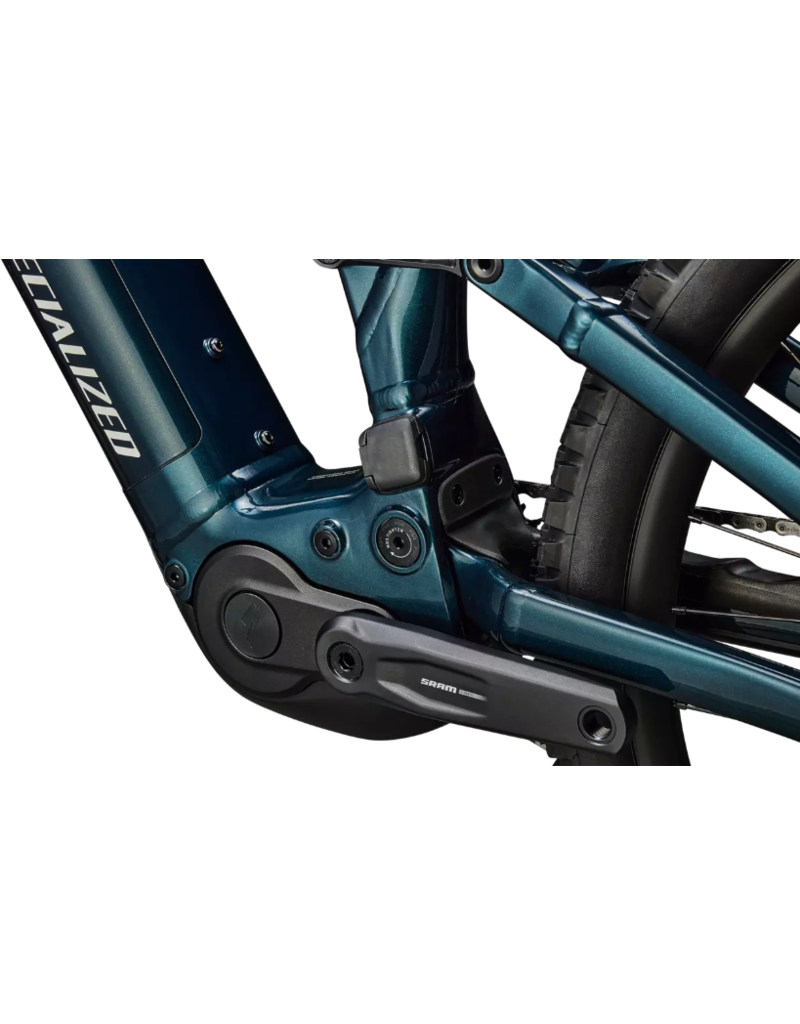

- Motor All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
- Charger Specialized 4amp charger
- Battery 840Wh battery
Frameset
- Seat Binder Alloy, 38.6mm
- Frame All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension

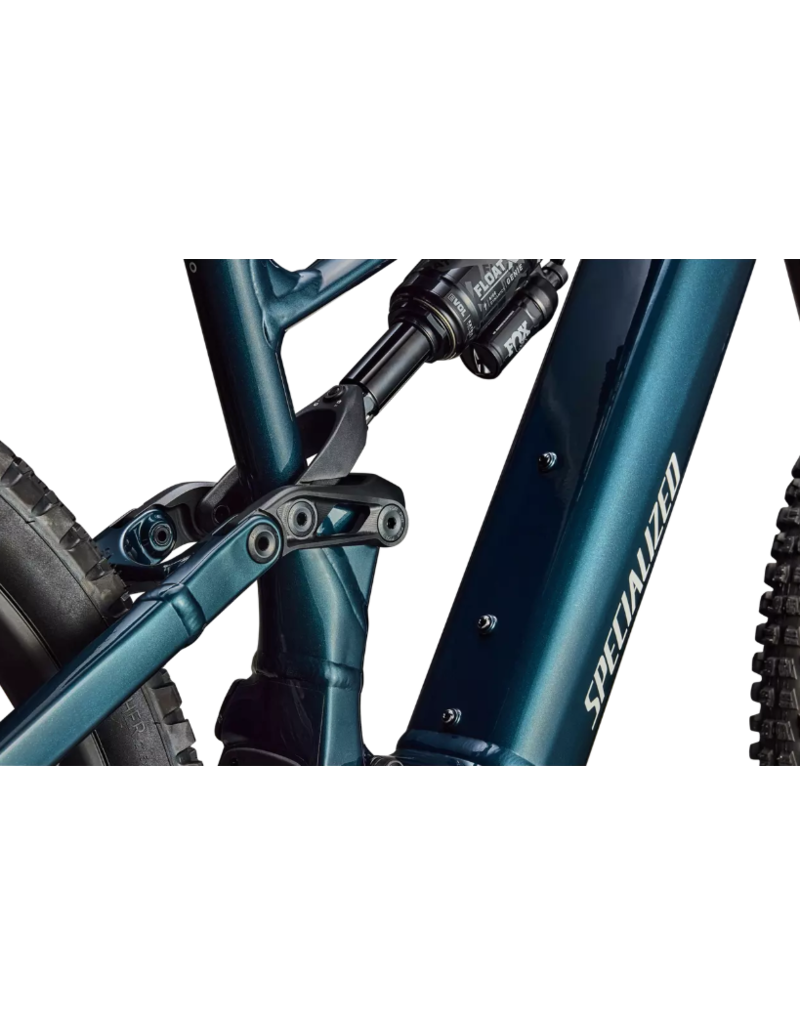

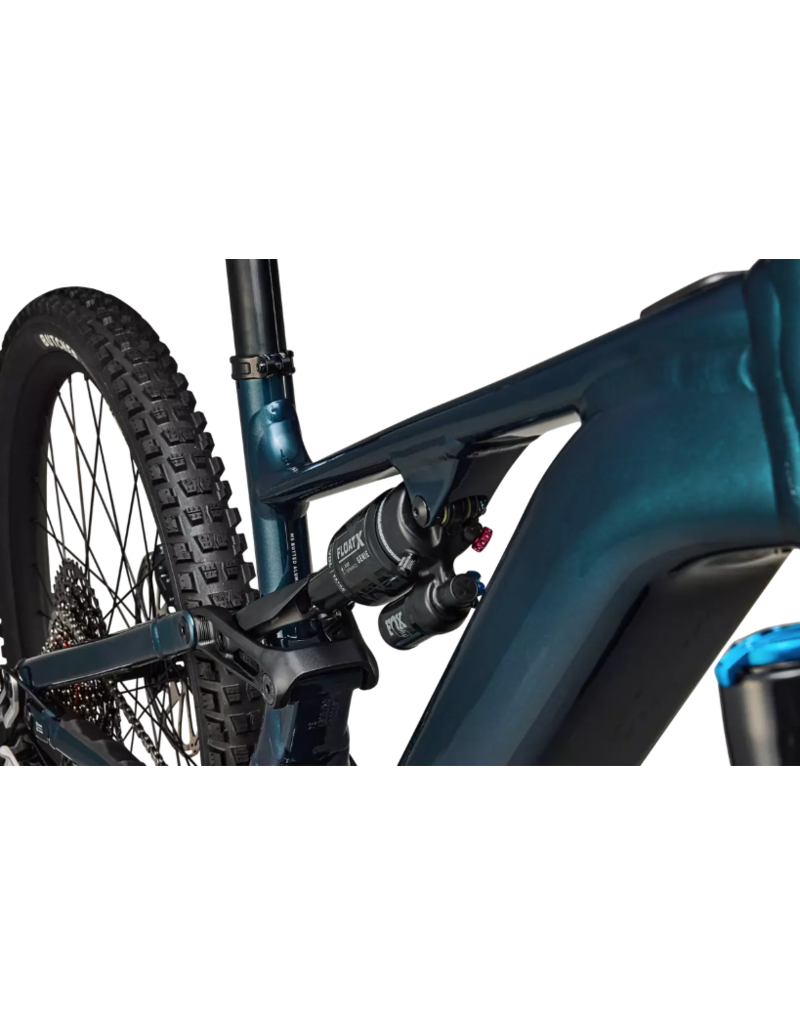

- Rear Shock FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
- Fork FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
Brakes
- Front Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
- Rear Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
- Cassette SRAM XS-1275, 12-speed, 10-52t
- Chainrings SRAM 34t T-Type chainring, 104 BCD, steel
- Chain SRAM GX Eagle T-Type Flattop Chain, 12-speed
- Shift Levers SRAM 90 trigger, 12-speed, single click
- Rear Derailleur SRAM Eagle 90 T-Type
- Crankset SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
- Rear Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
- Front Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Spokes DT Swiss Industry
- Front Hub Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims Specialized, hookless alloy, 30mm inner width, tubeless ready

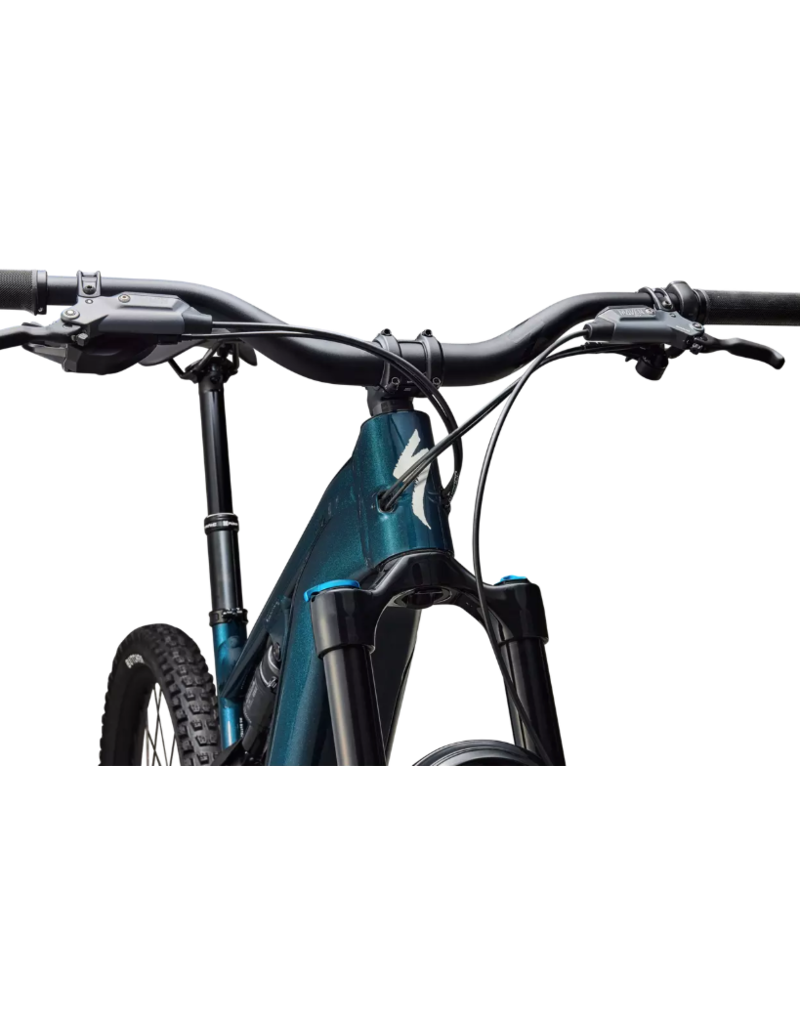

Cockpit
- Stem Alloy Trail Stem, 35mm bar bore
- Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
- Saddle Bridge Comp, Hollow Cr-mo rails 155/143
- Grips Specialized Trail Grips
- SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
Accessories
- SWAT internal downtube storage
Product details
- Product ID
- 221343
- Weight 25.70 kg (56 lb, 11.2 oz)
- Weight Size S4
