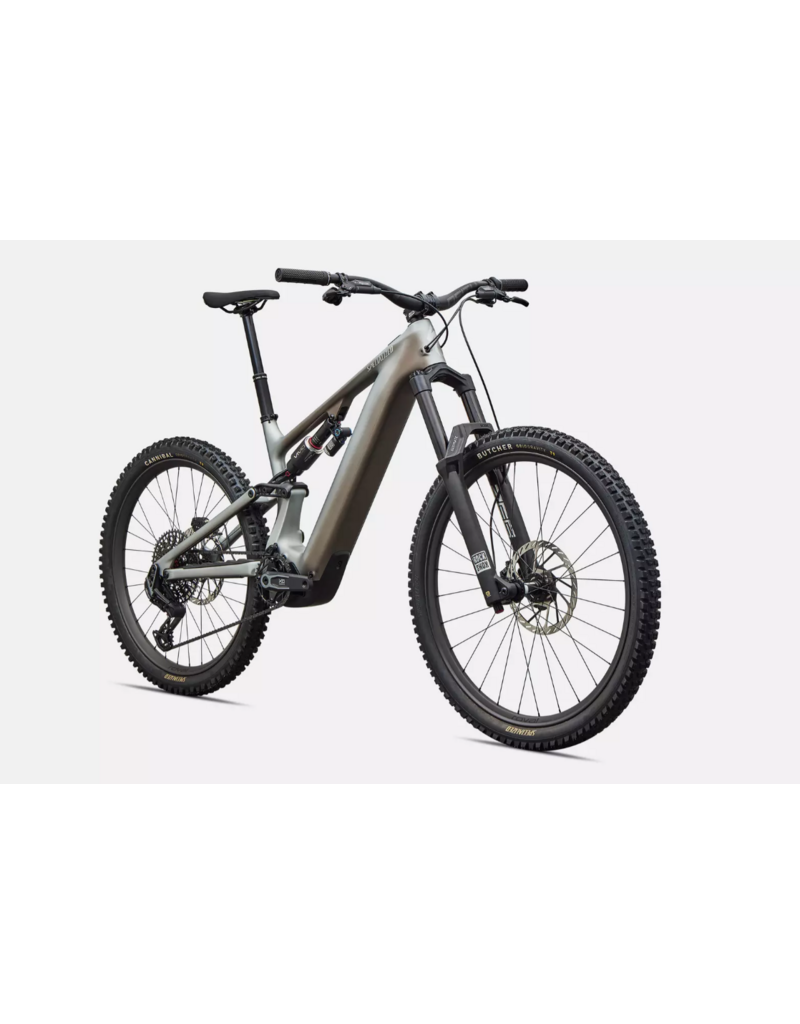

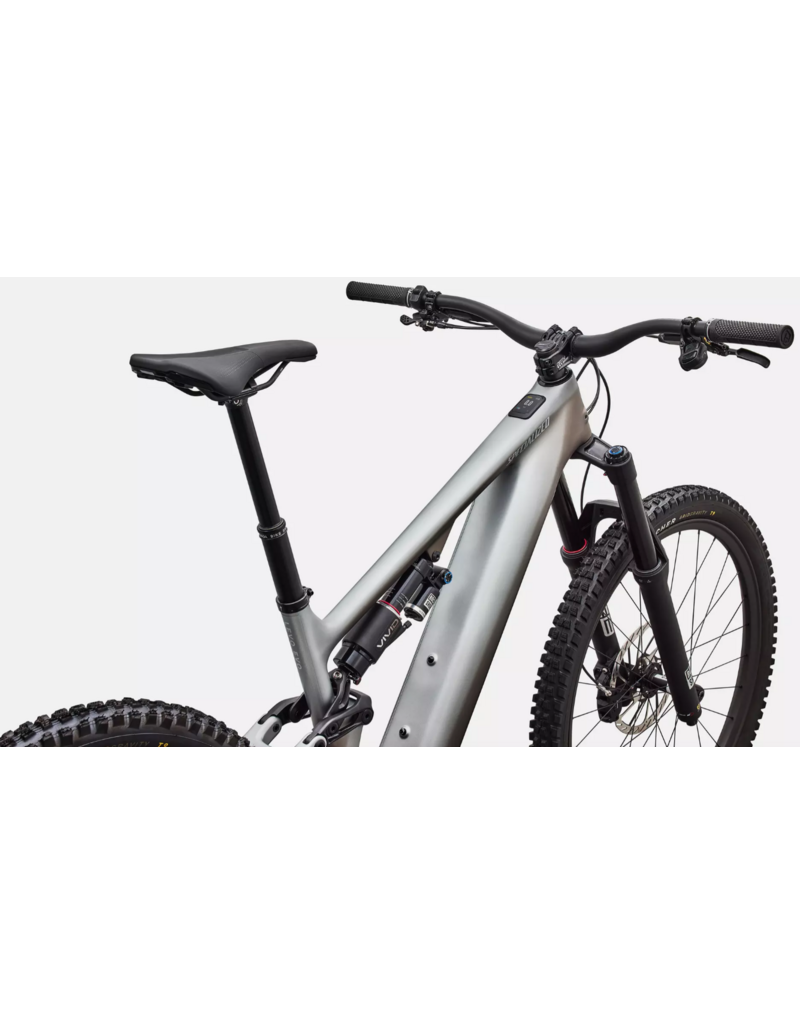

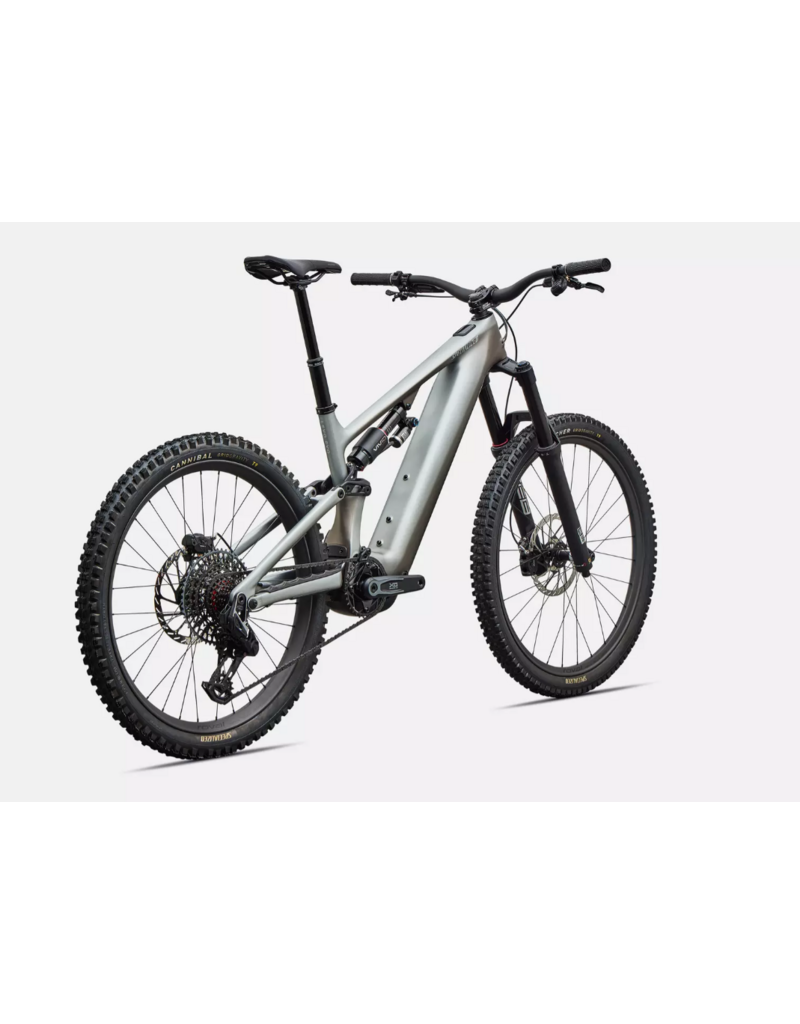

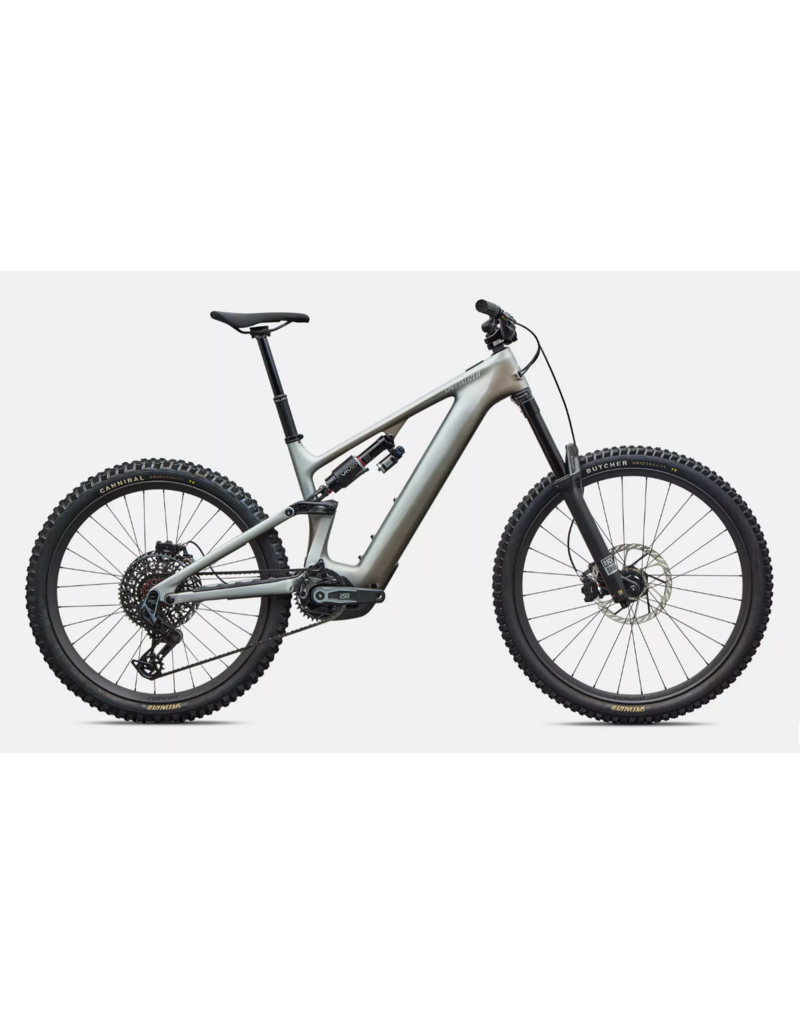

Specialized Levo 4 Evo Pro Satin Shadow / Silver Dust

Motor

Specialized 3.1 Motor, 105Nm torque, 810W power

Battery

840Wh battery

UI/Remote

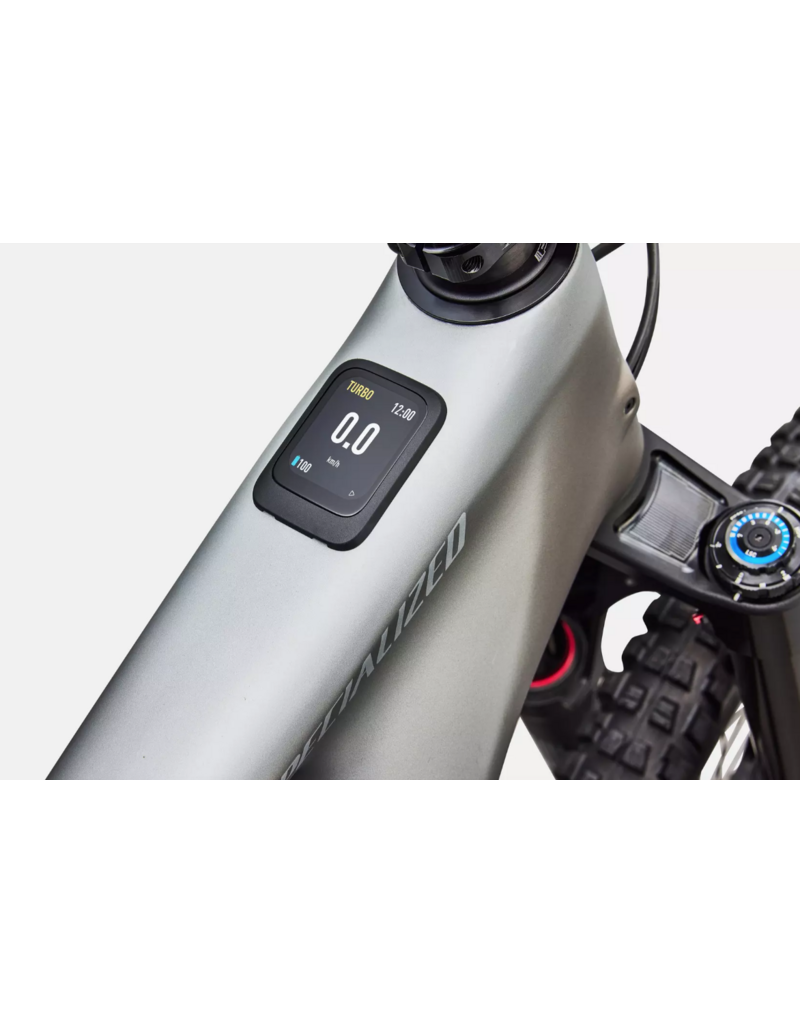

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Charger

Specialized 4amp charger

Frame

Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Seat Binder

Alloy, 38.6mm

Rear Shock

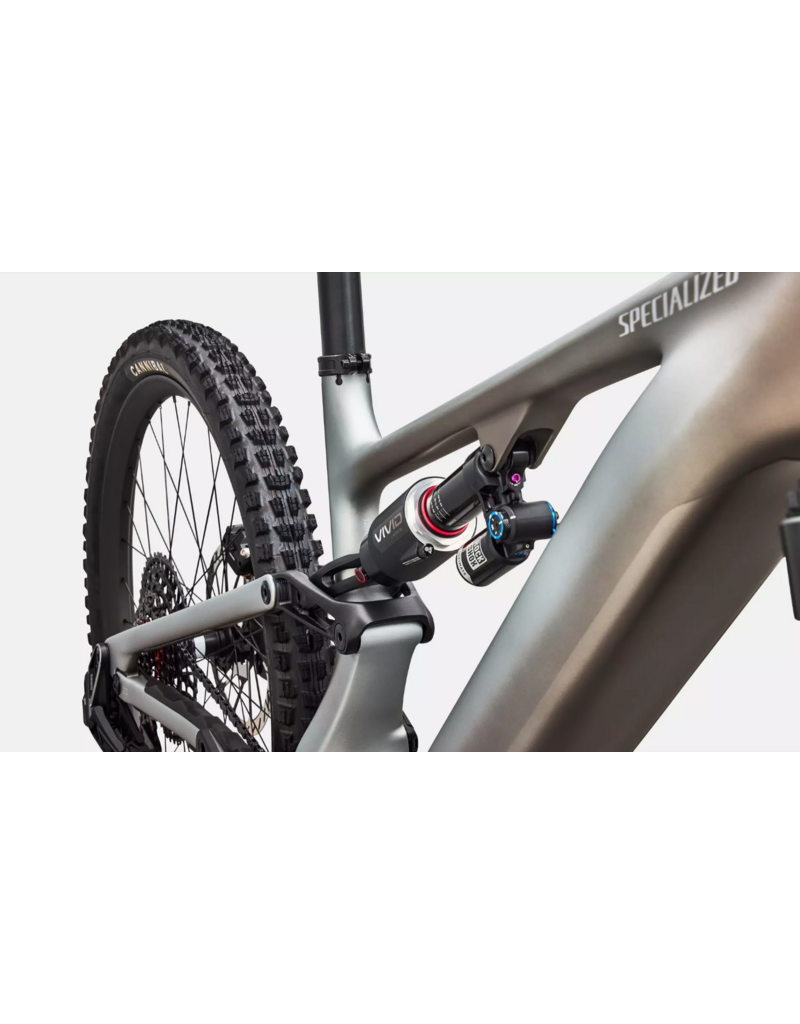

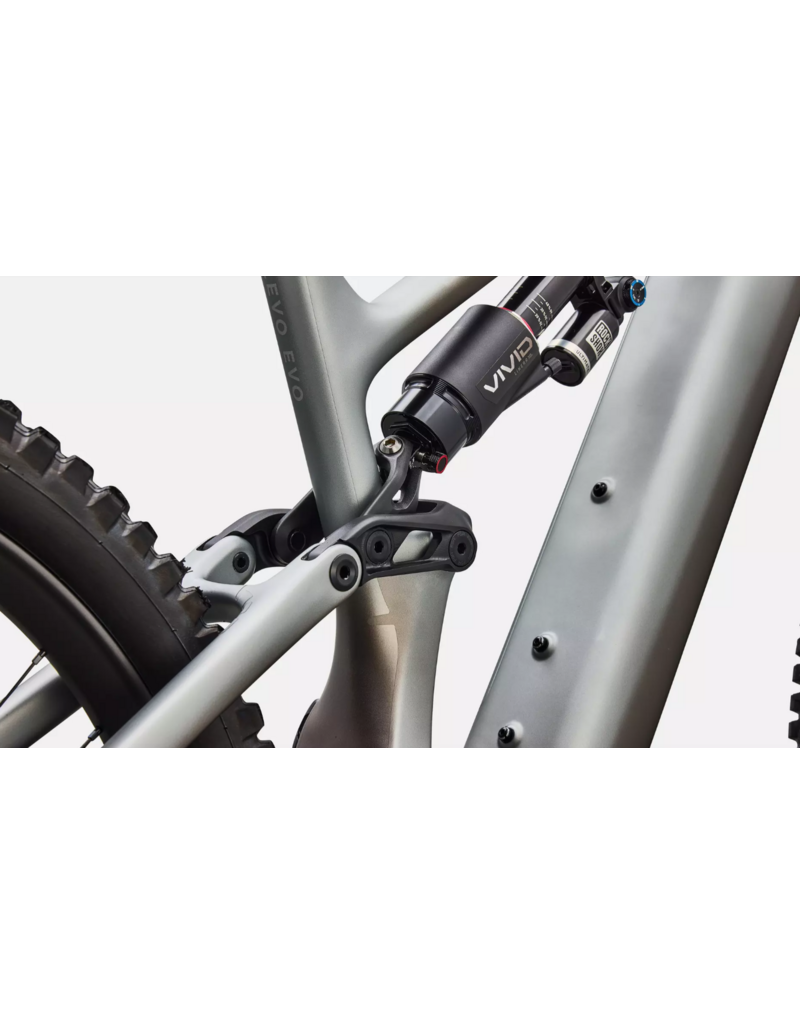

All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust

Fork

All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Shift Levers

SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur

SRAM X0 Eagle Transmission

Cassette

SRAM XS 1295, 12 speed, 10-52

Chain

SRAM X0 Eagle Transmission 12-Speed Flattop Chain

Crankset

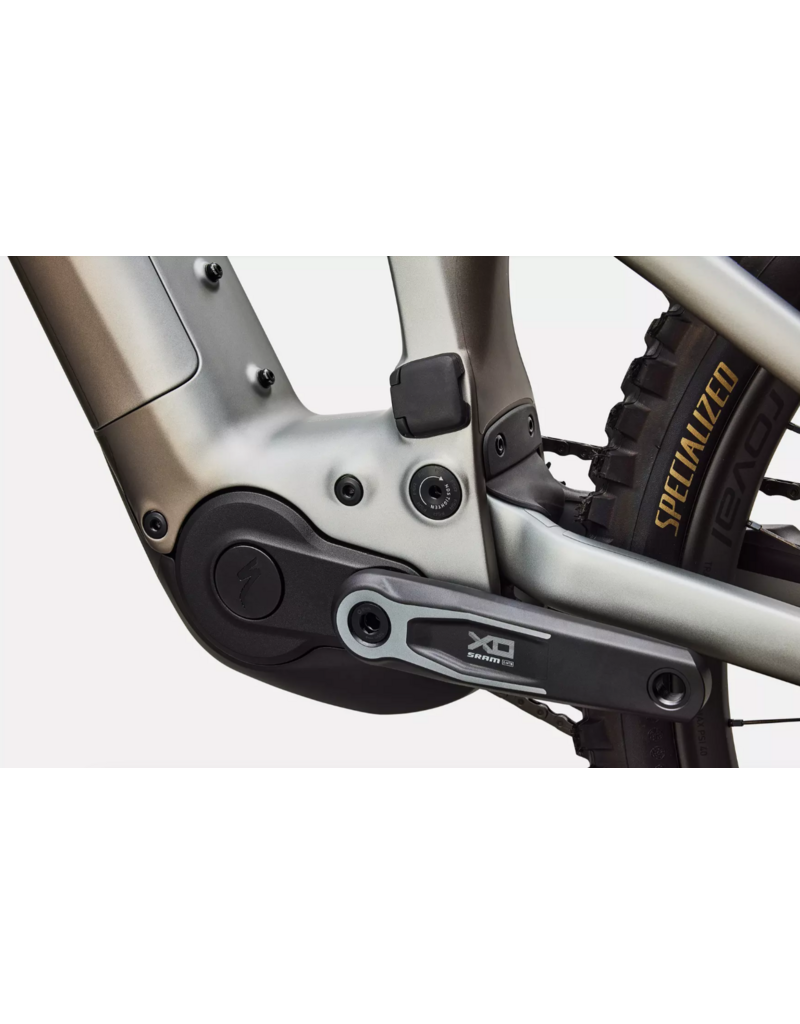

SRAM XO Alloy crank, 155mm, ISIS interface

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Front Tire

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Front Wheel

Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width

Rear Tire

Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Rear Wheel

Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148

Inner Tubes

Standard, Presta Valve

Stem

Deity, 35mm clamp, 42mm length

Handlebars

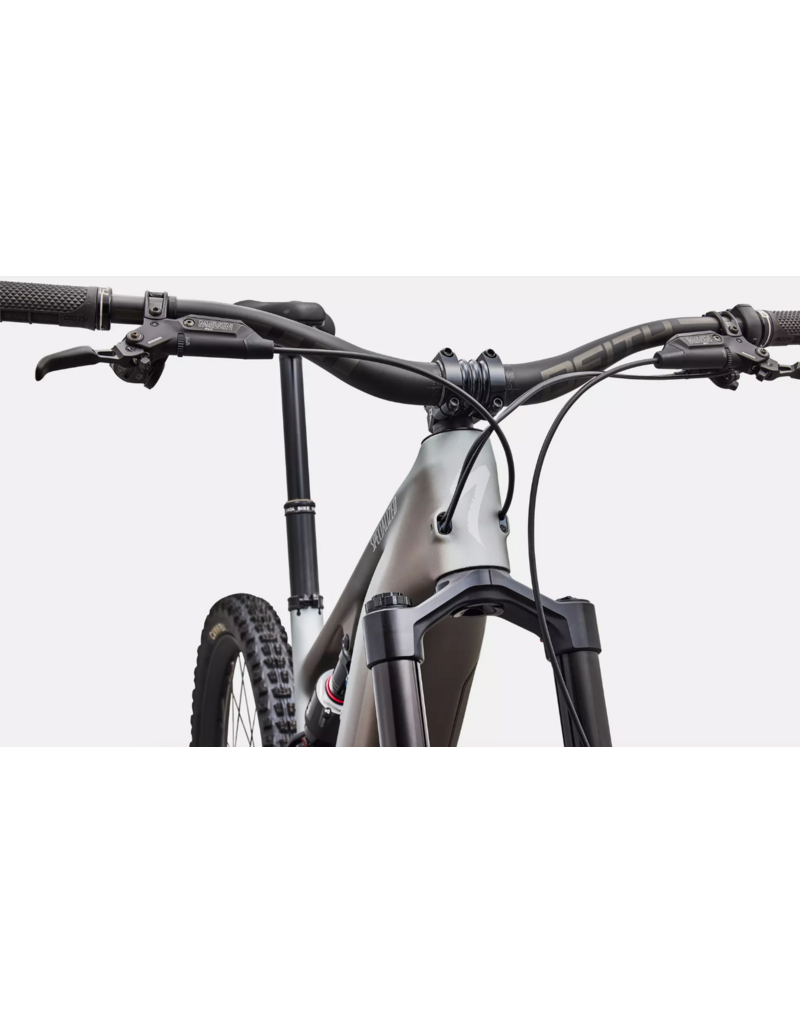

Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise

Grips

Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

Saddle

Bridge Expert with MIMIC, Hollow Ti rails

SeatPost

Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

SWAT

SWAT Internal downtube storage

Product ID

294785

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

24.4 kg (53 lb, 12.7 oz)

Weight Size

S4
