Specialized Levo 4 EVO Comp Alloy Gloss Desert Metallic / Metallic Obsidian

Levo 4 EVO Comp Alloy

SuperNatural Power, Capability, and Range

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential.This is Electric Enduro.

At a Glance

Use

Electric Enduro

E-System

Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame

Levo EVO M5 alloy frame, Geo Adj & SWAT Storage

Suspension

Fork: 180mm RockShox Zeb Select<br>Shock: Vivid Select Air Linear

Drivetrain

SRAM Eagle 90 T-Type

Wheels

Specialized Alloy Wheels

Technical Specifications

E-bike

Battery: 840Wh battery

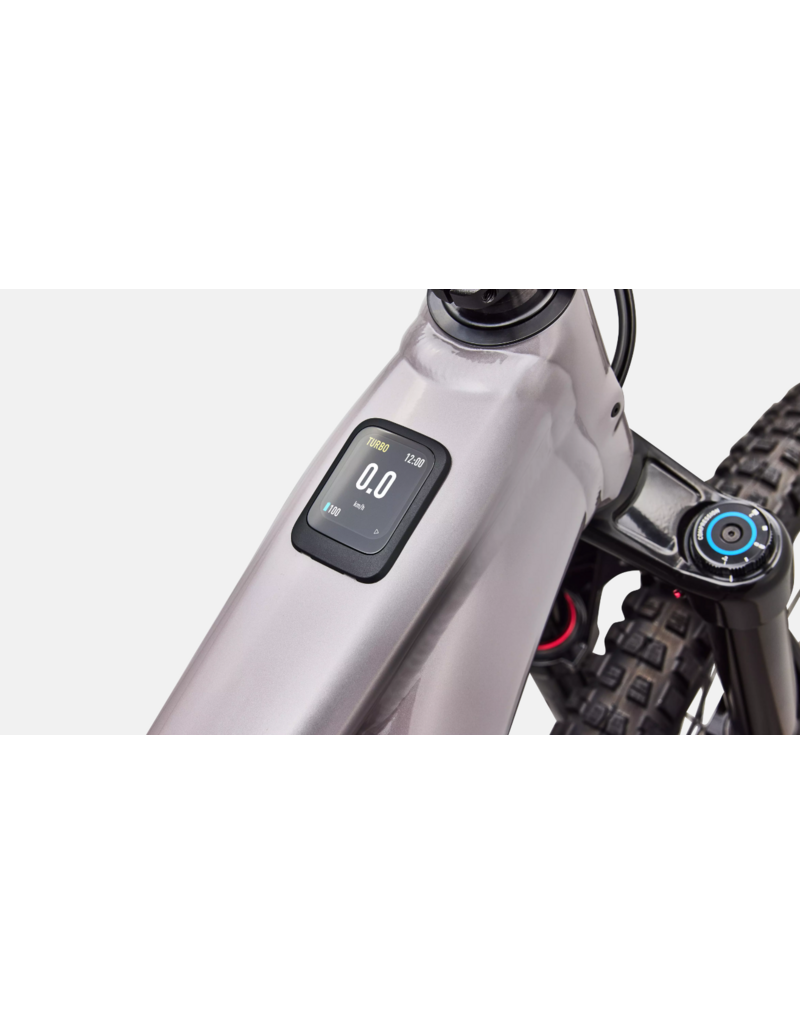

UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power

Charger: Specialized 4amp charger

Frameset

Seat Binder: Alloy, 38.6mm

Frame: Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel

Suspension

Fork: All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

Rear Shock: All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust

Brakes

Rear Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Front Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

Cassette: SRAM 12-speed,10-52t

Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Chain: SRAM 70 Transmission 12-Speed Flattop Chain

Shift Levers: SRAM Eagle 90T, single click, with MMX

Rear Derailleur: SRAM Eagle 90 T-Type

Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length

Wheels & tires

Front Tire: Butcher, GRID Gravity, T9, TLR, 29x2.4"

Rear Tire: Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Spokes: DT Swiss Elemental

Front Hub: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb

Rims: Specialized Alloy Rims

Inner Tubes: Standard, Presta Valve

Cockpit

Stem: Alloy Trail Stem, 35mm bar bore

Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise

Saddle: Bridge Comp, Hollow Cr-mo rails 155/143

Grips: Specialized Trail Grips

SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm

Accessories

SWAT: SWAT Internal downtube storage

Product details

Product ID: 296283

Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

Weight: 26.92 kg (59 lb, 5.6 oz)

Weight Size: S4

Geometry

	S2	S3	S4	S5	S6
Crank Length	155	155	155	155	155
Handlebar Width	780	800	800	800	800
Stem Length	40	40	40	40	40
Saddle Width	155	143	143	143	143
Seatpost Length	125	150	170	200	200
Stack	625	633	646	659	675
Reach	425	445	470	495	525
Headtube Length	95	103	117	132	149
Headtube Angle	63.6	63.6	63.6	63.6	63.6
BB Height	356	356	356	356	356
BB Drop	24	24	24	24	24
Trail	139	139	139	139	139
Fork Length (full)	597	597	597	597	597
Fork Rake/Offset	44	44	44	44	44
Front Center	773	797	828	859	897
Chainstay Length	435	435	435	435	435
Wheelbase	1208	1232	1263	1294	1331
Top-tube Length (horizontal)	580	602	630	658	691
Bike Standover Height	764	765	763	768	771
Seat Tube Length	390	405	425	445	465
Seat Tube Angle	76	76	76	76	76
Saddle Height for Effective ST Angle	690	735	780	825	870
Max Seatpost Insertion	274	289	313	337	357
Min Seatpost Insertion	80	80	80	80	80
