An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.
Long Range With 800Wh Removable Battery
The 800Wh battery is easy to swap and delivers up to 172km of range . Add a secondary battery to expand the total capacity up to 1280Wh
Supports up to 200kg Total Weight
Supports up to 200kg total weight. Features MIK HD-compatible rear rack and modular mounting design for panniers and a bike trailer.
125N·m & 1100W Powerful Output
Weighing just 2.65kg, the Avinox M2 Drive Unit delivers 1100W of peak power and 125N·m of max torque for steep ascents.
Frame
- Amflow TL Carbon Frame
- Full Suspension Design
- Removable Battery System
- Compatible with 27.5" and 29" Front and Rear Wheels
- Compatible with Front and Rear Mudguards
- Compatible with Front and Rear Racks
- Compatible with Bike Trailers (Trailer Thru-Axle Required)
- Colour: Silica Beige
E-Bike System

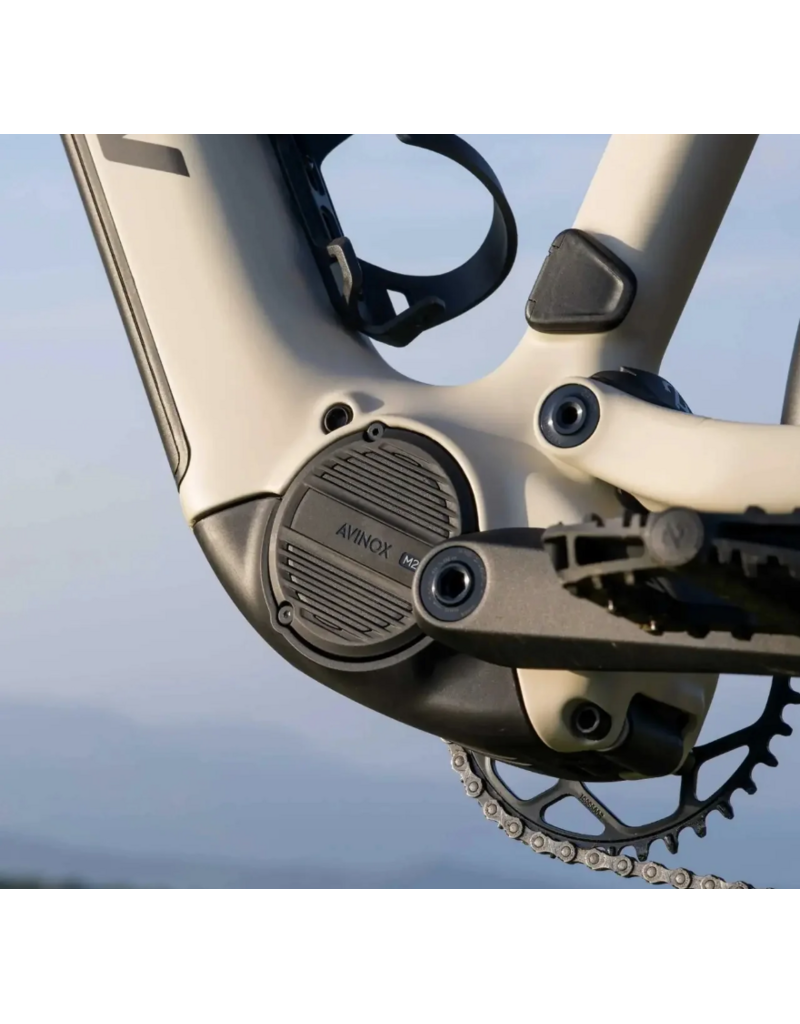

- Motor: Avinox M2 Drive Unit
- Continuous Torque: 110Nm
- Peak Torque: 125Nm

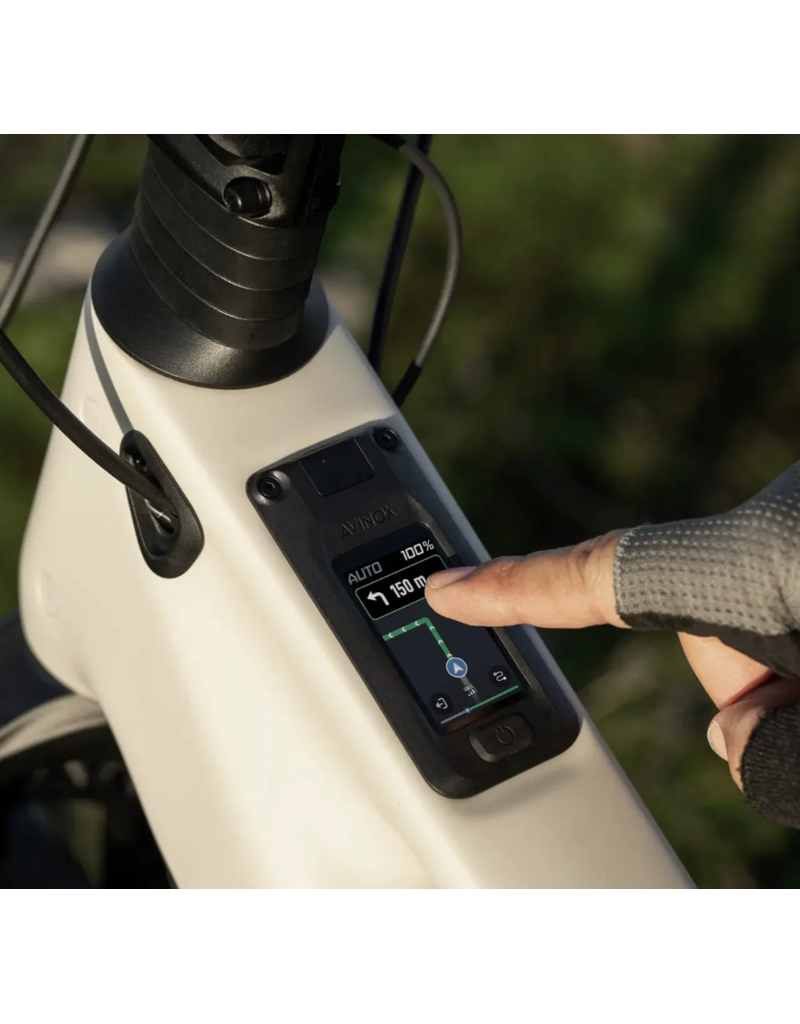

- Display: Avinox DPC100 2" OLED Control Display
- Battery: Avinox RS800 Removable Battery
- Battery Capacity: 800Wh
- Wireless Controllers: Avinox Wireless Controllers (Left & Right)
- Charger: Avinox 4A Charger
- Charging Output: 168W
Suspension

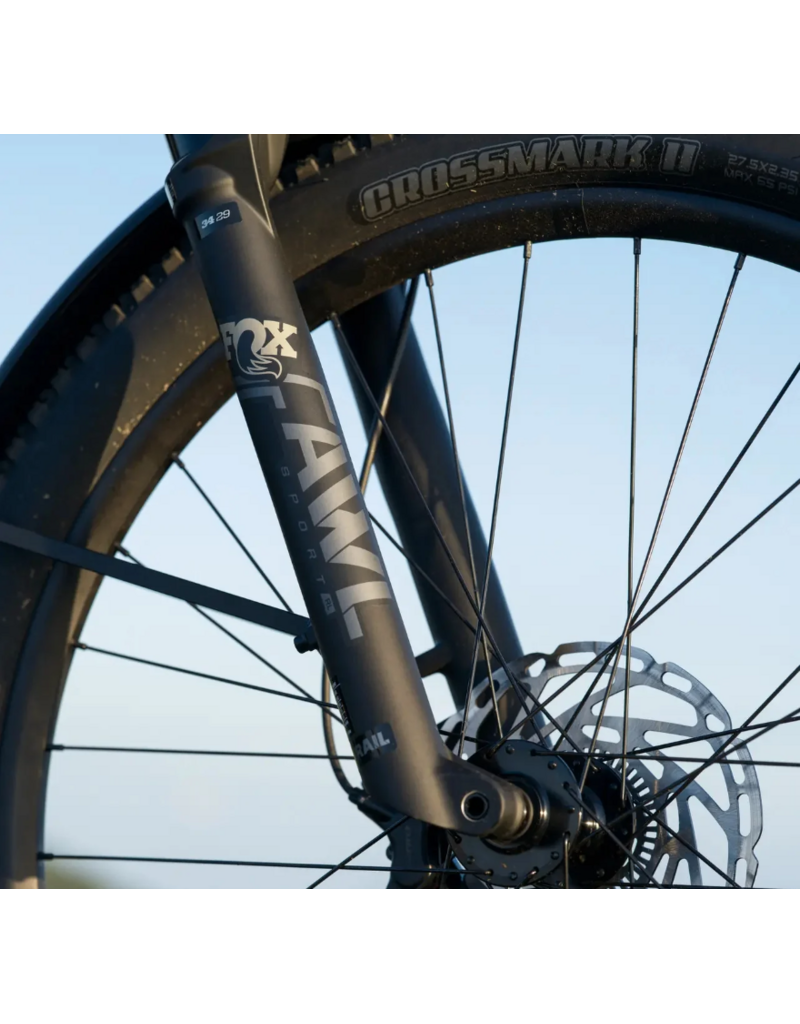

Fork
- FOX AWL Sport
- 120mm Travel
- RAIL 2.0 Damper
- Low-Speed Rebound Adjustment
- 15x110mm Kabolt Axle
- 44mm Offset
Rear Shock
- FOX Float Rhythm
- Amflow TL Tune
- Low-Speed Rebound Adjustment
- 190x45mm
Drivetrain
- Rear Derailleur: TRP E.A.S.I. RD-T7010E-L Electronic
- Cassette: CS-M5243, 11-43T
- Chain: Avinox eGlide T
- Chainring: Avinox Direct Mount, 38T
- Crankset: Avinox SL
155mm (S/M)
160mm (L/XL)
Brakes
- Brakes: Tektro TKD173 Hydraulic Disc
- 4-Piston Calipers
- Custom Tuned for Amflow
- Rotors: Tektro TR180-61E
- Front Rotor: 180mm
- Rear Rotor: 180mm
- Integrated Tonewheel for Avinox System
Cockpit
- Handlebar: Amflow Touring Handlebar
720mm Width (S/M)
740mm Width (L/XL)
35mm Clamp Diameter
93mm Rise
- Stem: Amflow Touring Split Stem
35mm Clamp
35mm Length
0° Rise
- Grips: Amflow Enduro Grip 2
Seating
- Saddle: Amflow Touring Saddle
- Dropper Post: Amflow TA Dropper Post
31.6mm Diameter
Adjustable Travel Reduction (0/-10/-20mm)
150mm Travel (S/M)
170mm Travel (L/XL)
Wheelset
Front Wheel
- Amflow HTA-25
- 27.5"
- Alloy Rim
- 25mm Internal Width
- 32 Hole
- 15x110mm Thru-Axle Hub
- 6-Bolt Rotor Mount
Rear Wheel
- Amflow HTA-25
- 27.5"
- Alloy Rim
- 25mm Internal Width
- 32 Hole
- 12x148mm Thru-Axle Hub
- 6 Pawl Freehub
- Shimano HG Driver
- 6-Bolt Rotor Mount
Tyres
- Front: Maxxis Crossmark II 27.5x2.35
EXO Casing
60TPI
Wire Bead
- Rear: Maxxis Crossmark II 27.5x2.35
EXO Casing
60TPI
Wire Bead
Accessories
- Avinox Front Light
- Sate-lite M8 Rear Light with Integrated Reflector

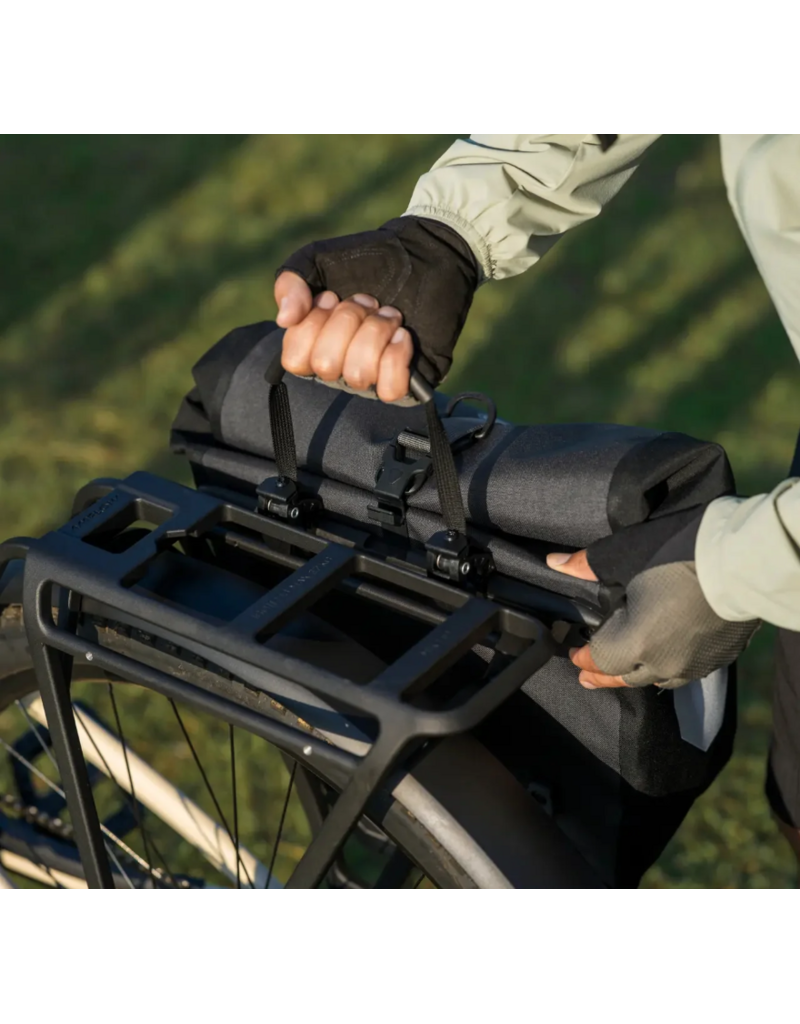

- Amflow Touring Rear Rack
MIK HD Compatible
Front Mudguard
- Rear Mudguard
- Amflow Touring Kickstand
- Amflow Elite MTB Pedals
- Amflow Bottle Cage
- Dropper Post Travel Reduction Spacer
- Two Battery Keys
- Torque Wrench Included
