| Availability: | Out of stock |
Frame
Amflow PR Carbon Pro Frame
Basalt Grey
40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
E-Bike System

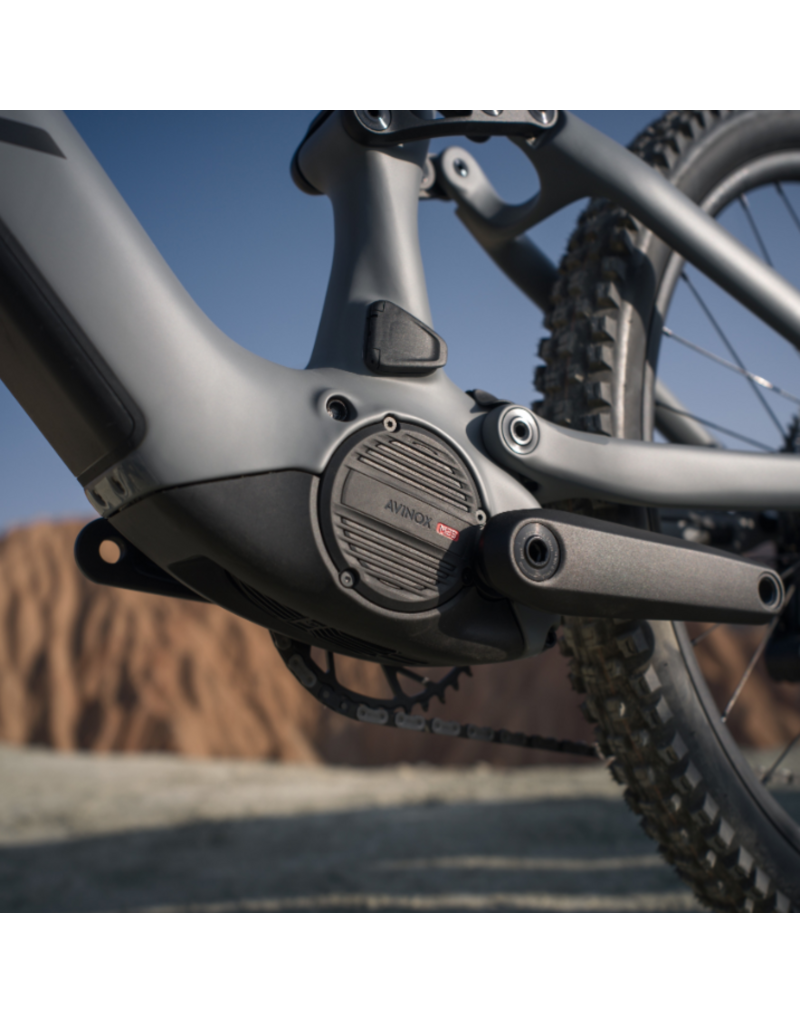

Avinox M2S Drive Unit: Nominal 130N·m, peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float X Performance
custom tune, LSR adjustment, 210×55mm, air shock
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Performance
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tires
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M Frame: 190mm
M Frame: 190mm
L/XL Frame: 210mm
L/XL Frame: 210mm
XXL Frame: 230mm
XXL Frame: 230mm
Accessories
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
