| Availability: | In stock |

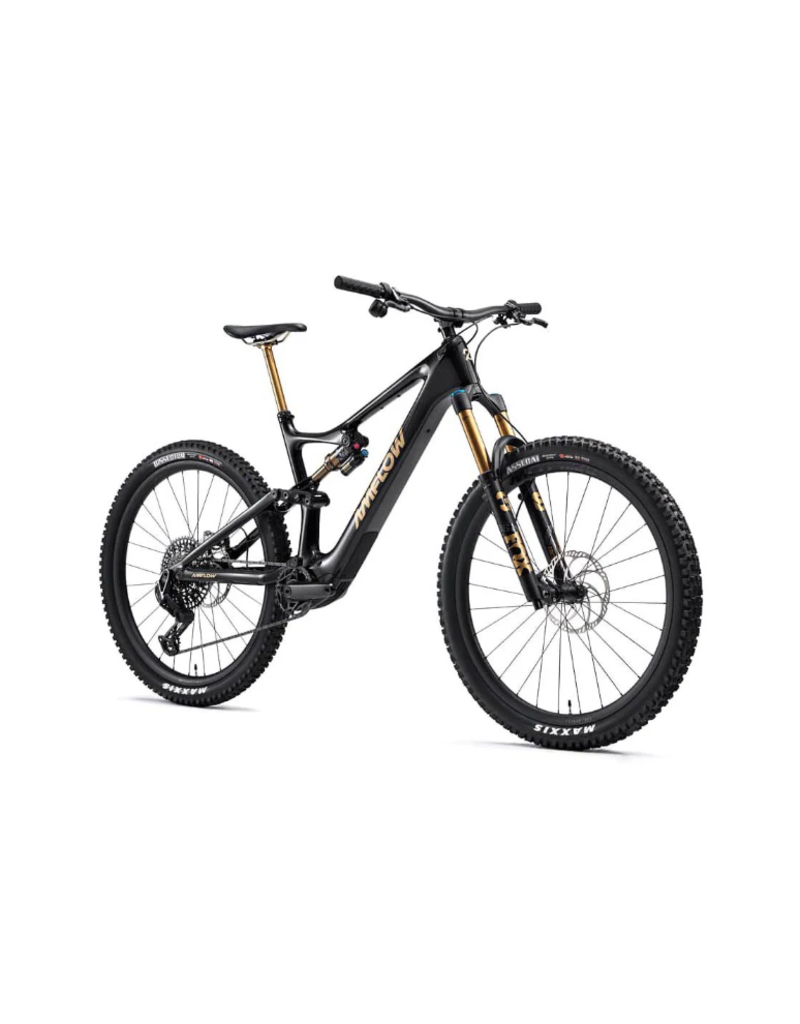

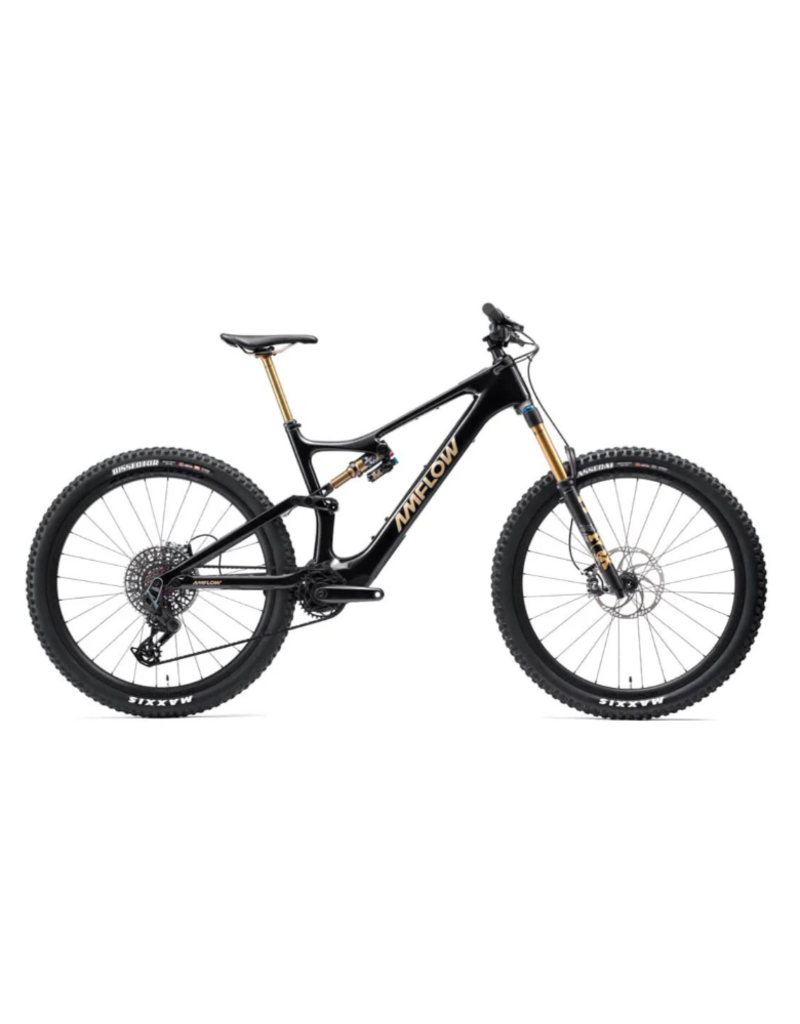

The Amflow PL Carbon Pro Electric Mountain Bike is a game-changing eMTB designed for riders who demand exceptional power, speed, and versatility.
Whether you're tackling rugged terrains, steep inclines, or technical trails, the Amflow PL delivers an unmatched riding experience, thanks to its 850W peak power, ultra-light carbon frame (weighing just 2.27 kg), and cutting-edge technology.
Ground-Breaking Motor Technology

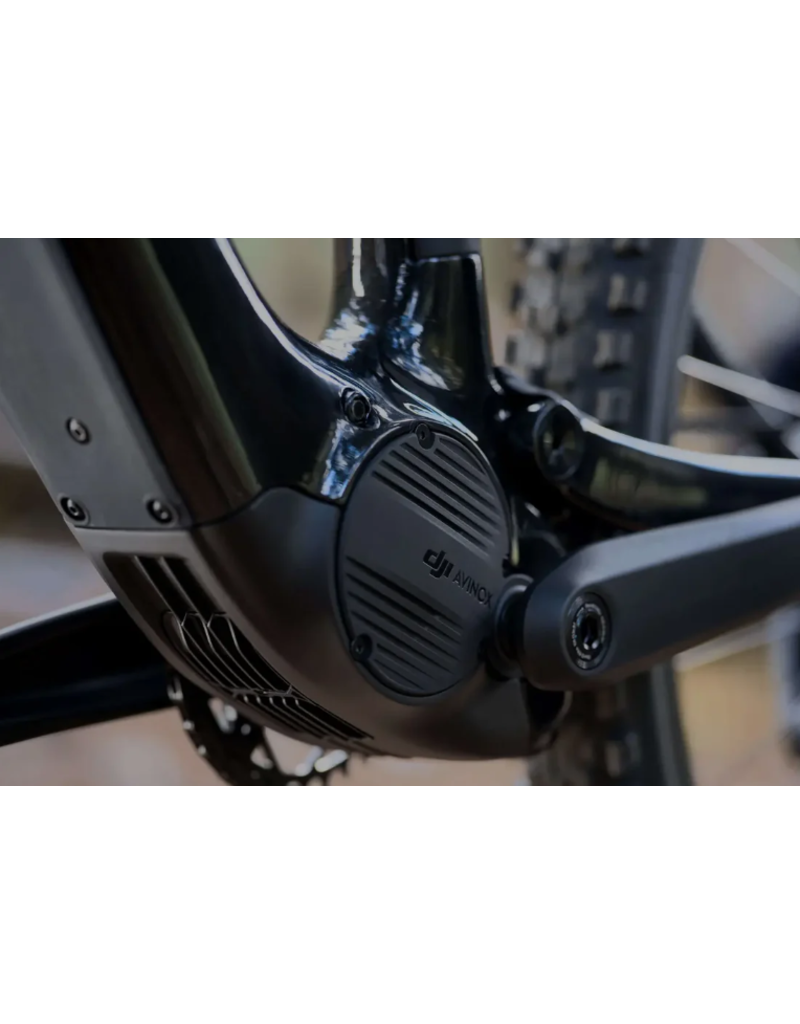

At the core of the Amflow PL is the DJI-designed Avinox M1 Drive System, offering 105 N·m of continuous torque and a range of five riding modes—Eco, Trail, Turbo, Auto, and Boost. Auto Mode adjusts power in real-time, while Boost Mode delivers 120 N·m of torque and 1000W of assistance, ideal for steep inclines. The system also features Walk Assist, Hill Start Assist, and Auto Hold, making it easier to navigate difficult terrain.
Ride All Day
With a high-capacity battery weighing only 2.87 kg, the Amflow PL offers extended range and a Battery Health Management System to ensure long-lasting performance. The GaN 3x Fast Charger powers the battery from 0% to 75% in just 1.5 hours, so you can get back on the trail quickly.
Tuned Suspension
The advanced four-bar linkage suspension and co-tuned FOX rear shock provide superior comfort and control on all types of terrain. Plus, the 2-inch OLED touchscreen and smartphone connectivity let you track ride data and adjust settings with ease.
Amflow PL Carbon Pro (800Wh)
Frame
Amflow PL Carbon Frame
Color: Cosmic Black
Rear Travel: 150mm
Wheel Compatibility: 27.5" and 29" Rear Wheels
E-Bike System
Drive Unit: Avinox M1 Drive Unit: 105 N·m
Screen: Avinox 2-inch OLED Control Display
Battery: Avinox Integrated Battery: 800Wh
Controllers: Avinox Wireless Controllers (Right & Left Sides)
Fast Charger: Avinox 12A/508W Fast Charger
Rear Shock
Model: FOX FLOAT X Factory
Shock Type: Trunnion (185×55mm), Custom Tune, EVOL Air Sleeve, 2-Position Lever w/ LSC Adjustment
Fork
Model: FOX 36 Factory
Travel: 160mm
Damper: GRIP X2 Damper
Axle: 15×110mm
Rake: 44mm
Transmission
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ Power Cable
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shifters: SRAM AXS Pod Controller
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Chain: SRAM X0 Eagle Transmission Flattop Chain
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Brakes: Magura MT7 Pro Hydraulic Disc Brake
Lever: HC Lever
Caliper: 4-Piston
Rotor: 203mm Storm HC (Front & Rear)
Wheels
Rims: Carbon, 29", 30mm Internal Width, 28H, Tubeless Ready
Spokes: SAPIM E-Light Straightpull
Front Hub: Alloy, 2 Sealed Cartridge Bearings, 15×110mm Thru-Axle, 28h, Straight-Pull, 6-Bolt
Rear Hub: Alloy, 4 Sealed Cartridge Bearings, 148×12mm Thru-Axle, 28h, Straight-Pull, 6-Bolt, 78T
Tires
Front Tire: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear Tire: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar
Model: Amflow Enduro Carbon Handlebar
Rise: 25mm
Width: 800mm
Upsweep: 5 Degrees
Backsweep: 9 Degrees
Saddle
Model: Ergon SM PRO M/L
Seatpost
Model: Fox Transfer Factory, Travel Adjustable in 5mm
Travel: M: 125-150mm, L/XL: 155-180mm, XL/XXL: 190mm, XXL: 185-210mm
